Front Diesel Fuel Sending Unit (1983–1996 Ford F-250/F-350/F-Super Duty)

The images shown are for illustration purposes only and may not be an exact representation of the product.

Fuel Strainer Required: This sending unit does not include a fuel strainer. A new fuel strainer is required for installation and should be purchased separately.

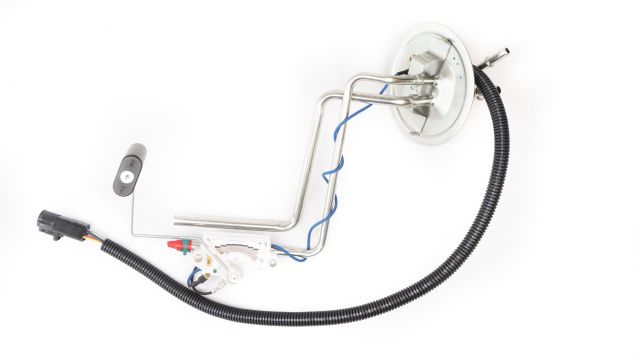

Restore accurate fuel level readings with this high-quality replacement front (midship) diesel fuel sending unit, manufactured to meet original factory specifications. Designed as a direct replacement, this unit includes a new lock ring and O-ring seal for a secure, leak-free installation. The fuel strainer is not included.

Features

• Direct replacement for the factory front (midship) diesel fuel sending unit
• Manufactured to OEM specifications for proper fit and function

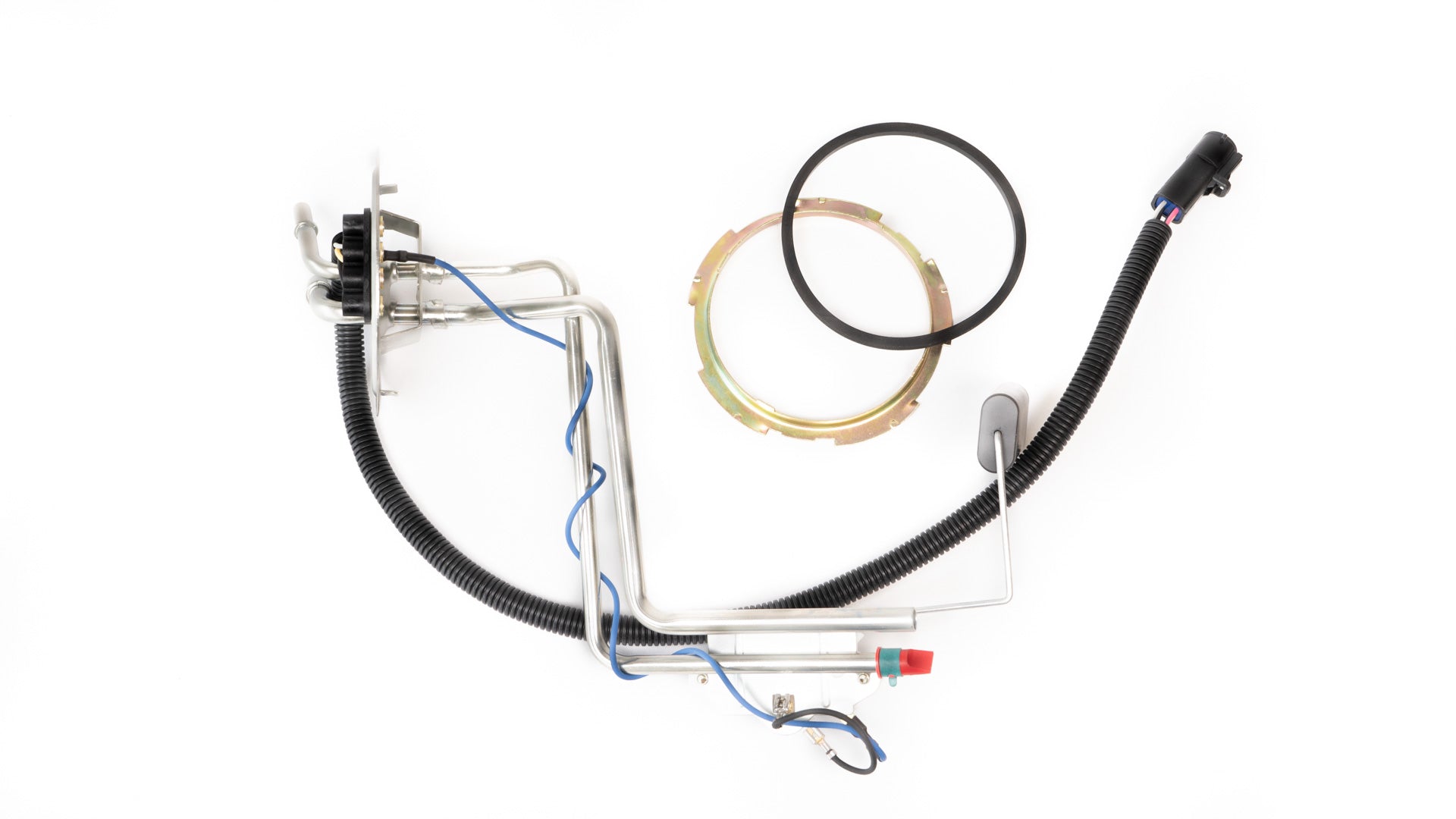

• Includes new steel lock ring (metal tank models) and O-ring seal
• Restores accurate fuel gauge operation
• Fuel strainer sold separately

Important Fitment Information

From 1994–1997, Ford used the same 4-wire chassis harness on both gasoline and diesel trucks. Diesel applications only utilize two wires (power and ground), while the remaining two wires are unused. The unused wires were intended for the in-tank electric fuel pump found on gasoline models.

On 1983–1993 diesel trucks, the sending unit connects using the original 2-pin connector.

Plastic Tank Note: Sending units for plastic fuel tank applications do not include a new plastic locking ring. Reuse your existing locking ring or purchase a replacement separately if needed.

Fits

• 1983–1996 Ford F-250 — 7.3L IDI Diesel, front (midship) fuel tank
• 1983–1996 Ford F-350 — 7.3L IDI Diesel, front (midship) fuel tank
• 1988–1996 Ford F-Super Duty — 7.3L IDI Diesel, front (midship) fuel tank

1994–1996 Connector Information

Some 1994–1996 models may have different sending unit connector styles. Verify your connector before ordering.

• Yellow Wire: Sending Unit Power
• Gray Wire: Sending Unit Ground
• Pink/Black Wire: Not Used
• Black Wire: Not Used
